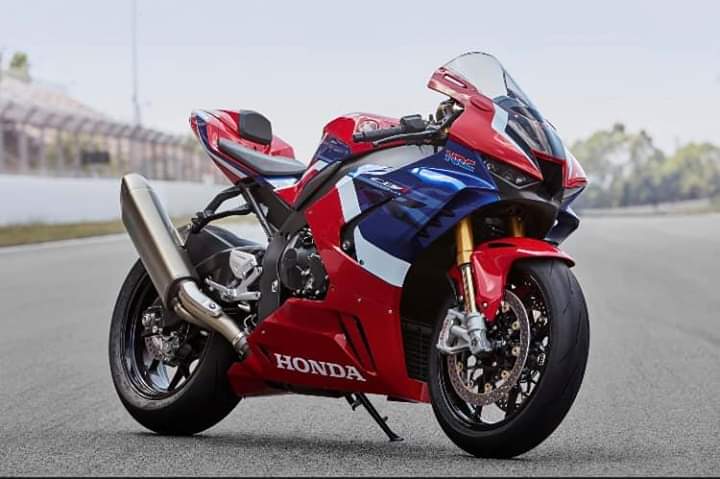

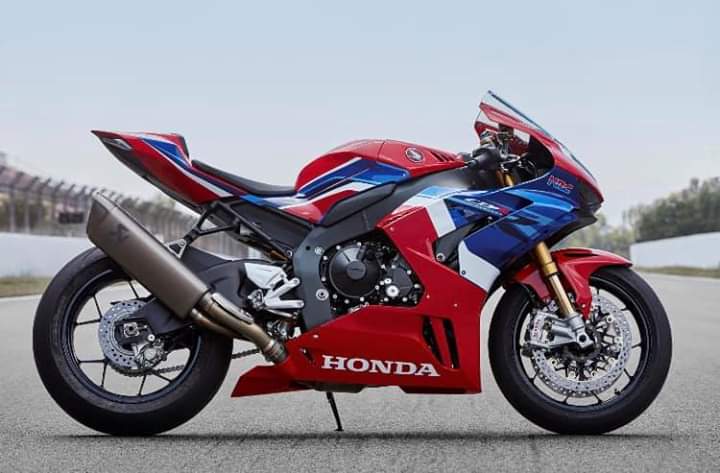

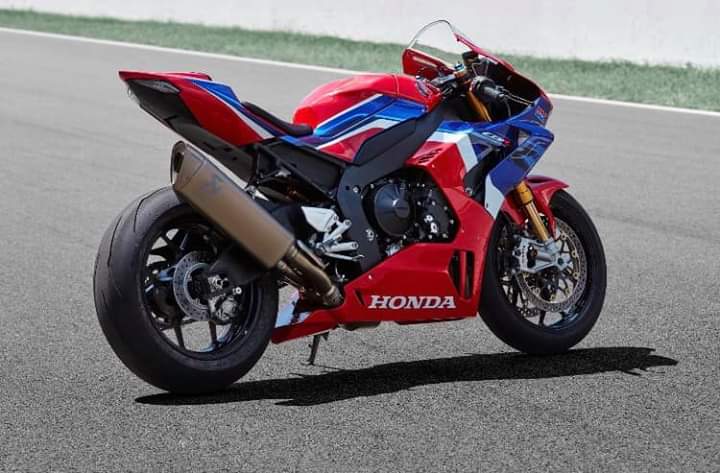

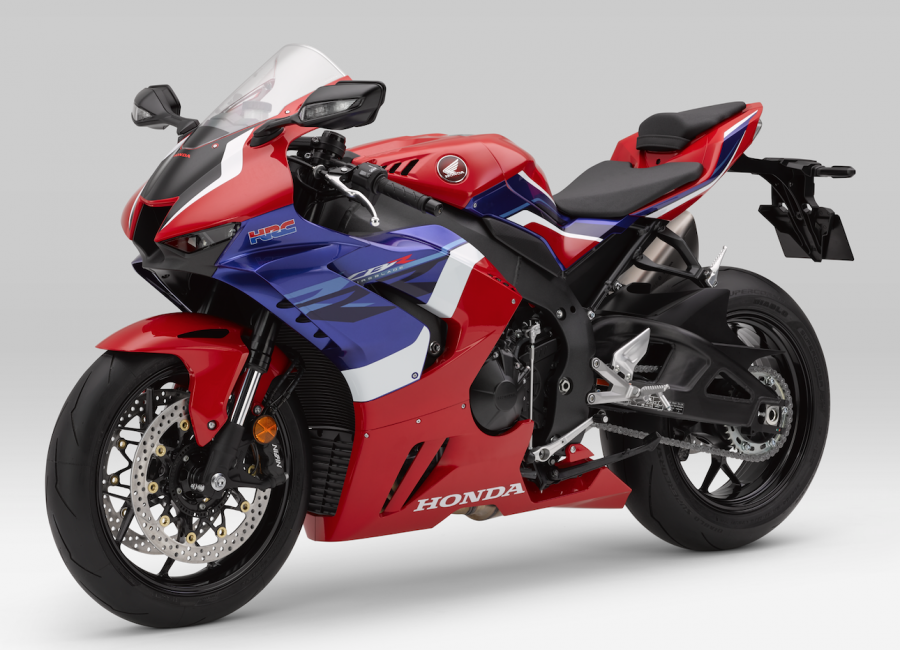

    News: Finally we see 2020 Honda Fireblade CBR1000RR-R and SP

    Honda Fireblade CBR1000RR is one of the most searched engima on the internet this year. Well, why not after all it was one Honda’s vision to stay in and compete with their Italian counterparts Ducati and the race to stay ahead.

    With Honda filing a trademark by adding R to its nomenclature of CBR1000RR and throwing the hint to the motorcycle world that there are two variants. The CBR1000RR-R was spied on track going smoothly again giving the motorcycle world the sleepless nights.

    We are not surprised that the new CBR1000RR-R was tested by Marquez given the fact that it was his future weapon for MotoGP.

    Let’s see what Honda has to offer.


    Compact Engine

    The spied variant itself gave us hints in terms of the engine of the new CBR1000RR-R getting compact and no doubt with EURO 5 compliant it is a step ahead in innovation. The engine remains inline-four and shares few likes from its earlier RC213V like the stroke and bore.

    The new Honda CBR1000RR-R joins the elite club of 200+ hp with competitors like S100RR and off course Ducati V4. There are few more innovative goodies that are stacked in CBR1000RR and those are friction-reducing technologies borrowed from RC213V-S.

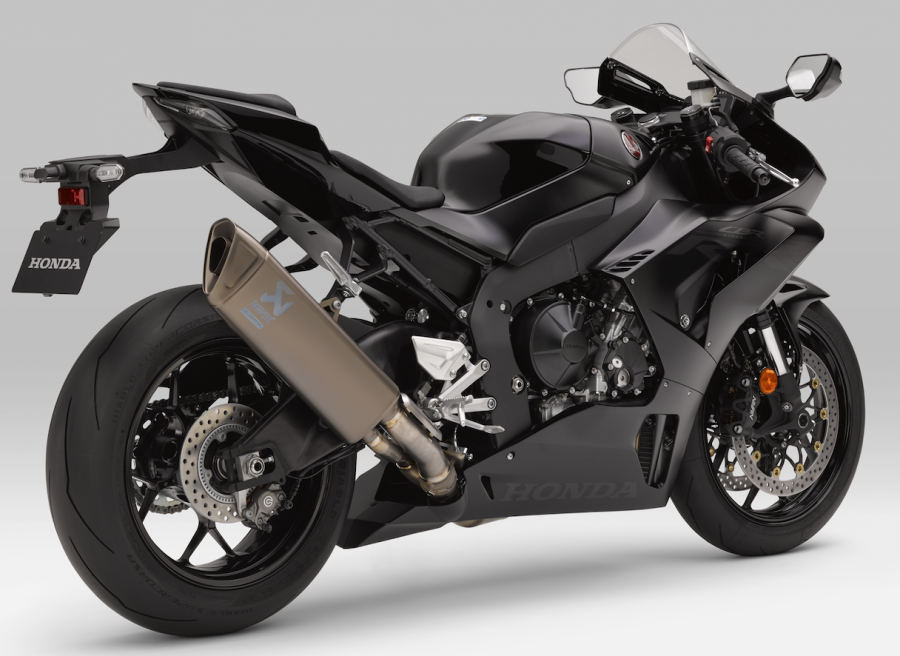

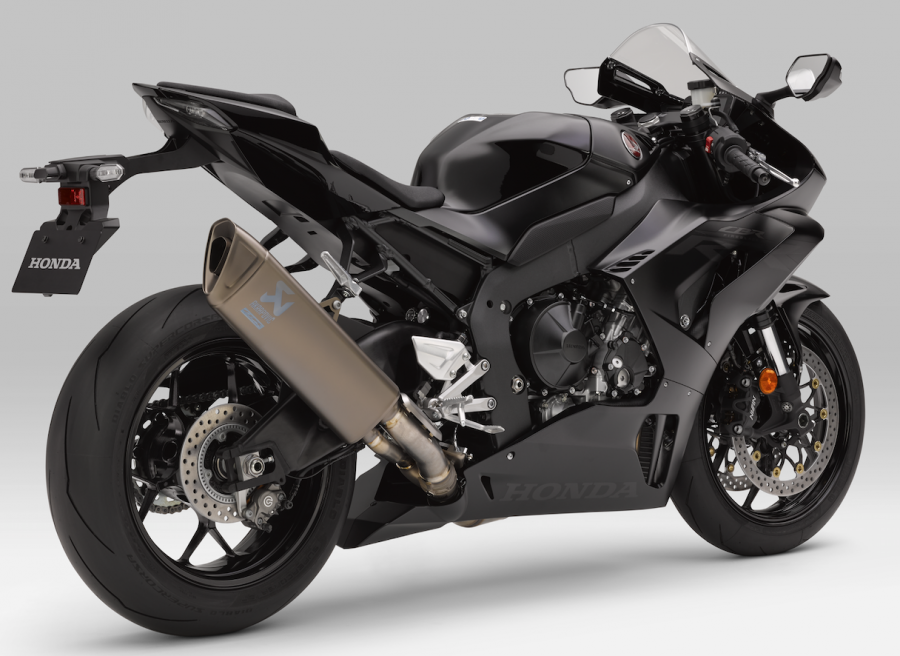

    To add to other marvel are the techs like to increase the enhanced feel the CBR1000RR-R gets three riding modes that come as default to balance the additional power that is stacked. The other features include the exhaust that is made in collaboration with Akrapovic.


    Structure

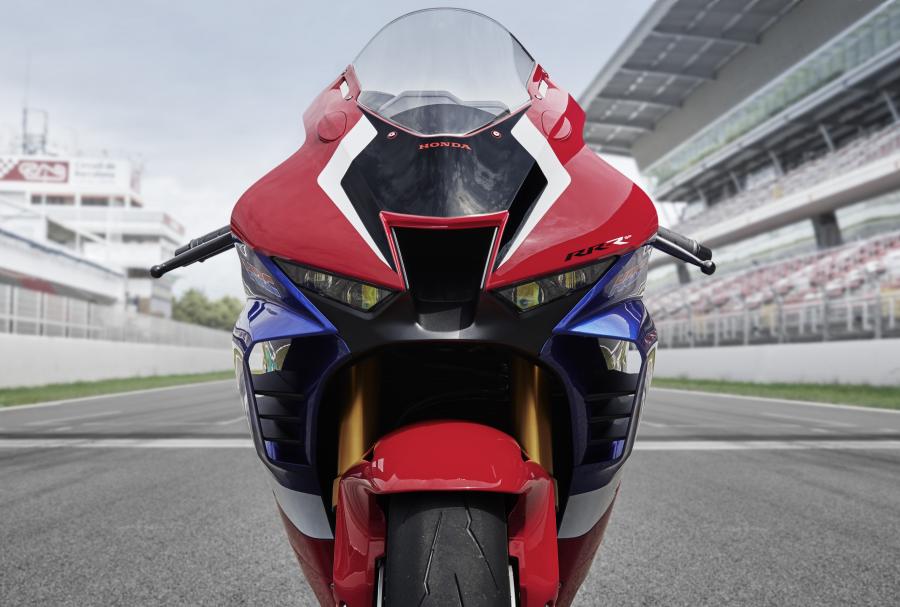

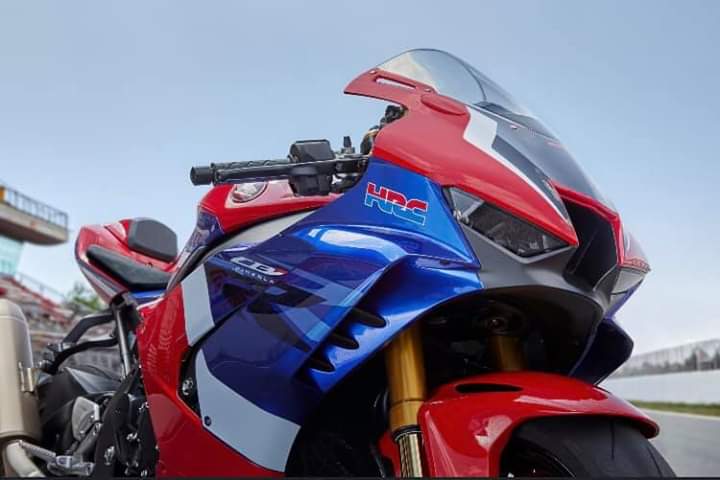

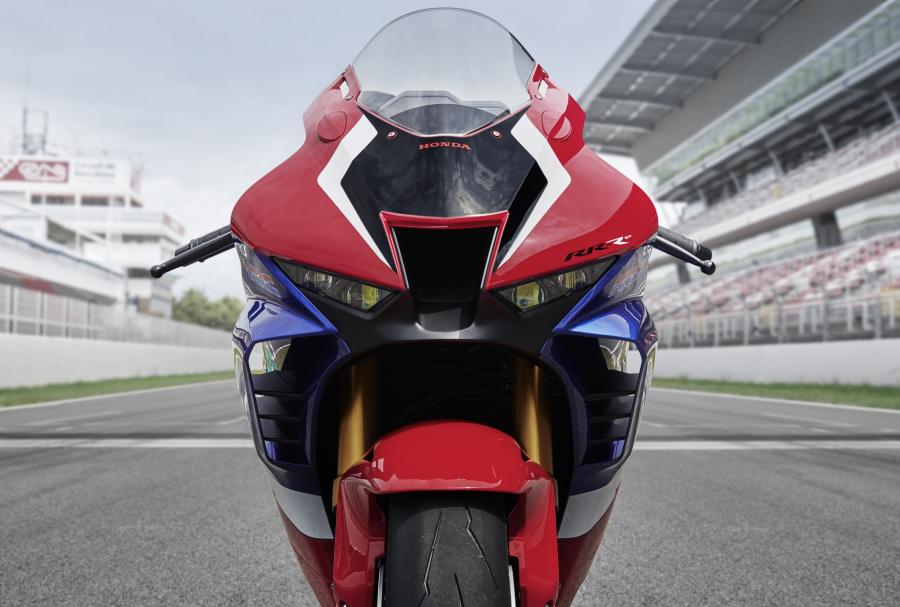

    Do not get surprised to know that the Honda CBR1000RR-R uses the advance aerodynamics that comes from RCV213V that is helped by patented winglets technology to reduce the downforce. Honda has made an entire new swingarm and an aluminum frame for Fireblade.

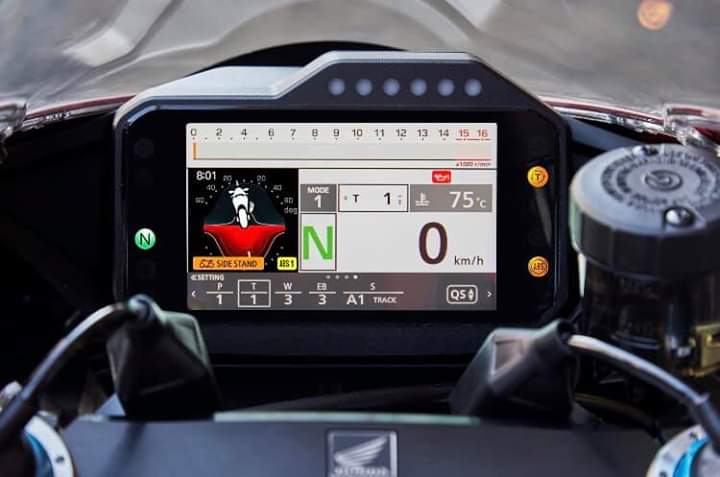

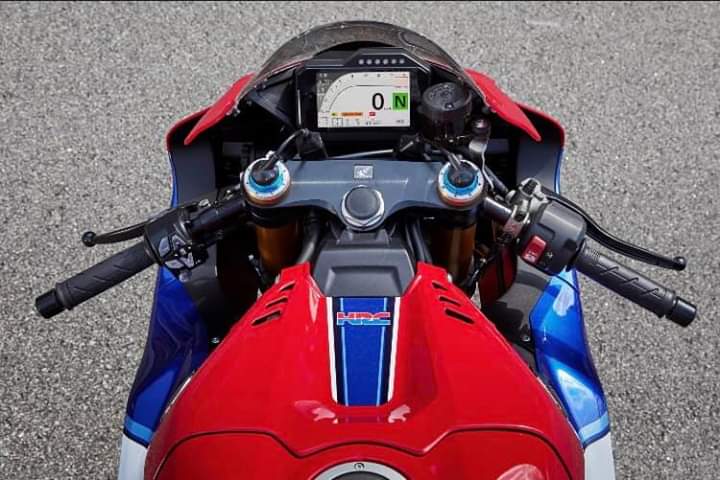

    The CBR1000RR-R comes with a TFT dash that is full color. Bosch IMU ( Intertial Measurement Unit). HSTC (Honda Selectable Torque Control). Honda smart key is an additional feature that is added. The drag coefficient is reduced by the fairings. The fuel tank is pushed on the lower side to provide the rider a more comfortable posture.

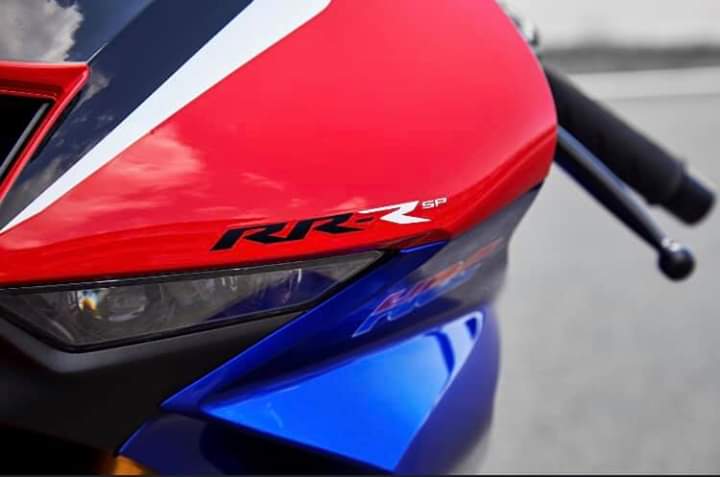

    SP Variant

    SP variant will get all the features of the CBRR-R but will have more tech goodies like Ohlins and Brembo.It also comes gets a telescopic inverted fork with 43 mm inner diameter of 43mm and Ohlins NPX Smart EC with preload at the front and Pro-Link with gas-charged Ohlins TTX36 Smart-EC damper.

    Brake duties on SP variant are performed by Brembo Stylema four-piston brake calipers at the front and the rear is brought from the RC213V-S.

    Specifications

    ENGINE

    Type

    Liquid-cooled 4-stroke 16-valve DOHC Inline-4

    Engine Displacement (cm³)

    999.9cc

    Bore × Stroke (mm)

    81mm x 48.5mm

    Compression Ratio

    13.0 x 1

    Max. Power Output

    160kW @ 14,500

    Max. Torque

    113Nm @ 12,500

    FUEL SYSTEM

    Carburation

    PGM-DSFI

    Fuel Tank Capacity

    16.1L

    Mileage/Consumption

    16.0km/litre

    ELECTRICAL SYSTEM

    Starter

    Electric

    Battery Capacity

    12-6 YTZ7S

    DRIVETRAIN

    Clutch Type

    Wet, multiplate hydraulic clutch with assist slipper

    Transmission Type

    6-speed

    Final Drive

    Chain

    FRAME

    Type

    Aluminium composite twin spar

    CHASSIS

    Dimensions (L x W x H)

    2100 x 745 x 1140mm

    Wheelbase

    1455mm

    Caster Angle

    24o

    Trail

    102mm

    Seat Height

    830mm

    Ground Clearance

    115mm

    Kerb Weight

    201kg

    SUSPENSION

    Type Front

    Showa Telescopic inverted fork with an inner tube diameter of 43 mm, and a Big Piston Front Fork with preload, compression and rebound adjustment, 120mm stroke



    SP: Telescopic inverted fork with inner

    diameter of 43mm and Ohlins NPX Smart-

    EC with preload, compression and

    rebound adjustments. 125mm stroke.

    Type Rear

    Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment, 137mm stroke.

    Showa Balance-Free Rear Cushion with preload, compression and rebound adjustment.



    SP: Pro-Link with gas-charged Ohlins TTX36 Smart-EC damper featuring preload, compression and rebound damping. 143mm stroke.

    WHEELS

    Rim Size Front

    17 inch x 3.5

    Rim Size Rear

    17 inch x 6.0

    Tyres Front

    120/70-ZR17

    Pirelli Diablo Supercorsa SP

    Bridgestone RS11

    Tyres Rear

    200/55-ZR17

    Pirelli Diablo Supercorsa SP

    Bridgestone RS11

    BRAKES

    ABS System Type

    2 Channel

    Front

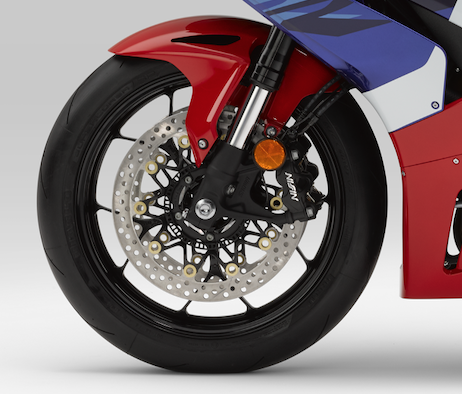

    330mm disc with radial-mount 4-piston Nissin caliper



    SP: 4-piston Brembo Stylema 330mm disc

    Rear

    220mm disc with 2-piston Brembo caliper

    INSTRUMENTS & ELECTRICS

    Instruments

    TFT-LCD

    Headlight

    LED

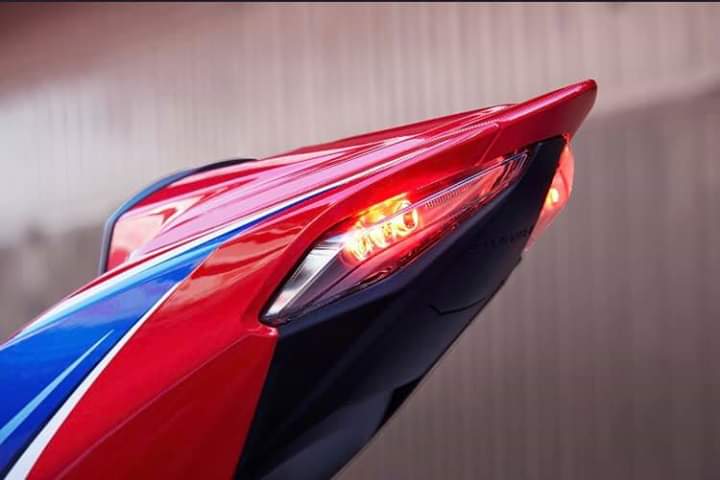

    Taillight

    LED
